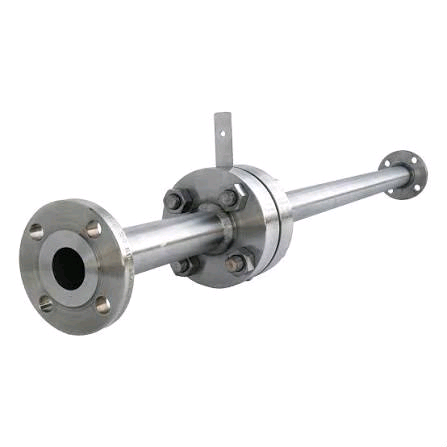

Orifice Meter

Key Features of an Orifice Meter

Precision-machined orifice plate

Differential-pressure measurement

Durable metallic construction

Suitable for liquid, gas and steam applications

Available in different pipe sizes

Multiple pressure-rating options

Can be supplied with differential-pressure transmitters

Suitable for industrial process measurement

Easy integration with instrumentation systems

Replaceable orifice plates on applicable assemblies

Available in stainless steel and other materials

Suitable for laboratory and industrial applications

Can be configured for high-pressure applications

Available with flange, carrier or fitting assemblies

Description
Reviews (0)

Description

Orifice Meter Price in Nigeria

Nature Links Nigeria Limited is an Authorized Distributor, Supplier & Dealer of genuine flow measurement and industrial instrumentation equipment in Nigeria, supplying orifice meters, orifice plates, flow meters, pressure instruments and laboratory flow-measurement equipment to customers across Nigeria.

Orifice Meter Price in Nigeria

The Orifice Meter Price in Nigeria depends on the meter size, material, pressure rating, orifice plate specification, differential-pressure transmitter, brand, accuracy and whether you are buying an orifice plate alone or a complete metering assembly.

Current market information indicates that basic orifice plates can be available from around ₦70,000, while complete flow-measurement or educational apparatus can cost around ₦1,950,000–₦2,500,000. Complete industrial orifice-flow-meter assemblies can be substantially more expensive depending on the transmitter, materials and certification requirements.

Therefore, buyers searching for the Orifice Meter Price in Nigeria should confirm the exact configuration before comparing prices.

Orifice Meter Price Range in Nigeria

Orifice Meter Type| Indicative Price Range

Orifice Plate Only| ₦70,000 – ₦300,000+

Basic Orifice Meter Assembly| ₦300,000 – ₦800,000+

Industrial Orifice Flow Meter| ₦800,000 – ₦2,500,000+

Complete Flow Measurement Apparatus| ₦1,950,000 – ₦2,500,000+

Premium Oil & Gas/Fiscal Metering System| ₦2,500,000+

These are indicative ranges rather than fixed quotations. Size, pressure class, material, transmitter type, certification, calibration and exchange-rate movements can significantly affect the final price. A Nigerian market report also notes that basic complete orifice-meter assemblies can range from roughly US$500–$1,500 at landed cost, while premium fiscal-grade systems can reach US$5,000–$12,000 per measurement point.

What Is an Orifice Meter?

An orifice meter is a differential-pressure flow-measuring device used to determine the flow rate of a fluid through a pipe. It uses a precisely manufactured orifice plate to create a pressure drop as fluid passes through the restricted opening.

The pressure difference across the plate can then be measured and used to calculate flow rate.

Orifice meters are widely used because the technology is relatively simple, robust and suitable for many industrial applications.

Key Features of an Orifice Meter

– Precision-machined orifice plate

– Differential-pressure measurement

– Durable metallic construction

– Suitable for liquid, gas and steam applications

– Available in different pipe sizes

– Multiple pressure-rating options

– Can be supplied with differential-pressure transmitters

– Suitable for industrial process measurement

– Easy integration with instrumentation systems

– Replaceable orifice plates on applicable assemblies

– Available in stainless steel and other materials

– Suitable for laboratory and industrial applications

– Can be configured for high-pressure applications

– Available with flange, carrier or fitting assemblies

A Nigerian listing for an industrial stainless-steel orifice plate describes it as suitable for measuring liquids, gases and steam when used with differential-pressure instrumentation.

Uses of Orifice Meter

The Orifice Meter is used for flow measurement in:

– Oil and gas facilities

– Petroleum processing

– Refineries

– Petrochemical plants

– Water treatment plants

– Chemical industries

– Power plants

– Manufacturing facilities

– Steam systems

– Gas distribution systems

– Process-control systems

– Engineering laboratories

– Universities and technical institutions

Nigeria’s orifice-flow-meter market serves oil and gas, refining, power generation, water treatment and process manufacturing applications.

Benefits of Orifice Meter

Accurate Flow Measurement

When properly sized, installed and calibrated, an orifice meter can provide reliable differential-pressure flow measurement.

Simple Operating Principle

Its operation is based on the relationship between fluid velocity and pressure difference across a restriction, making the technology relatively straightforward.

Durable Construction

Industrial orifice plates can be manufactured from stainless steel and other materials selected for the operating fluid and environment.

Wide Application

The technology can be applied to liquids, gases and steam, provided the meter is correctly designed for the service.

Cost-Effective Technology

Compared with some advanced flow-metering technologies, an orifice-based system can offer a relatively economical solution, particularly for standard applications.

Easy Component Replacement

In many systems, the orifice plate can be replaced without replacing the entire piping system.

Orifice Meter Datasheet

Exact specifications depend on the manufacturer and application. Before ordering, request a datasheet containing the following:

Specification| What to Confirm

Meter Type| Orifice plate or complete meter assembly

Pipe Size| Required line diameter

Orifice Bore| Calculated according to application

Material| Stainless steel, carbon steel or specified alloy

Pressure Rating| Required operating pressure/class

Fluid| Water, gas, steam, oil or other fluid

Temperature| Minimum and maximum operating temperature

Differential Pressure| Required DP range

Transmitter| Required or not required

Accuracy| Application-specific

Connection| Flanged or other connection

Calibration| Required certification/calibration

Standard| Applicable engineering standard

Installation| Horizontal/vertical requirements

Orifice Meter Compatibility

Before buying an orifice meter, ensure that it matches:

– Pipe diameter

– Pipe schedule

– Fluid type

– Fluid density

– Operating pressure

– Operating temperature

– Flow-rate range

– Differential-pressure range

– Flange rating

– Material requirements

– Transmitter specifications

– Process connection

Correct sizing is particularly important. An incorrectly sized orifice plate can produce unsuitable pressure loss and inaccurate flow measurement.

Orifice Meter vs Other Flow Meters

Feature| Orifice Meter| Venturi Meter| Rotameter

Principle| Differential pressure| Differential pressure| Variable area

Construction| Relatively simple| More elaborate| Tube and float

Pressure Loss| Relatively high| Generally lower| Application-dependent

Cost| Generally economical| Usually higher| Low to moderate

Industrial Use| Very common| Common| Common

Maintenance| Relatively simple| Low| Relatively simple

Suitable for Gas| Yes, with correct design| Yes| Yes, depending on model

Suitable for Liquids| Yes| Yes| Yes

Orifice Meter vs Orifice Plate

An orifice plate is the restriction element itself, while a complete orifice meter system can include the plate, carrier/flanges, pressure taps, differential-pressure transmitter, valves, impulse tubing and associated instrumentation.

This distinction is important when comparing the Orifice Meter Price in Nigeria, because an inexpensive orifice plate should not be compared directly with a complete industrial metering package.

Orifice Meter for Laboratory and Educational Use

Orifice meters are also used in engineering laboratories to demonstrate fluid-flow principles. Flow-measurement teaching apparatus can combine an orifice meter with a Venturi meter and rotameter for comparison experiments. A Nigerian listing for such an educational flow-measurement apparatus is advertised at about ₦1,950,000.

Such equipment can be useful for students studying:

– Fluid mechanics

– Mechanical engineering

– Civil engineering

– Chemical engineering

– Hydraulics

– Process engineering

What Determines Orifice Meter Price in Nigeria?

The final Orifice Meter Price in Nigeria can be influenced by:

1. Pipe size

2. Orifice plate material

3. Pressure class

4. Differential-pressure transmitter

5. Flow range

6. Operating temperature

7. Fluid being measured

8. Required accuracy

9. Calibration and certification

10. Brand and country of manufacture

11. Importation and logistics costs

12. Current exchange rate

Premium applications requiring certified plates, smart transmitters, flow computers or specialized materials can cost considerably more than basic water-service equipment.

How to Choose the Right Orifice Meter

When purchasing an orifice meter, provide the supplier with your pipe size, fluid type, minimum and maximum flow rate, operating pressure, operating temperature and required accuracy.

For oil and gas, chemical processing or other critical applications, also specify the required material certification, pressure class, calibration requirements and applicable engineering standards.

Where to Buy Orifice Meter in Nigeria

Nature Links Nigeria Limited supplies flow-measurement and industrial instrumentation products to customers across Nigeria.

Distributor, Supplier & Authorized Dealer: Nature Links Nigeria Limited

Call: 07049528019

WhatsApp: 09040054359

Visit Their Shop: F1571 UP, Alaba International Market, Lagos, Nigeria

Delivery: Same Day Delivery in Lagos. Same Day Shipping to Other States.

Contact Nature Links Nigeria Limited to confirm the latest Orifice Meter Price in Nigeria, available specifications, product configuration and delivery options.

Orifice Meter Price in Lagos

The Orifice Meter Price in Nigeria may differ between Lagos suppliers and other locations because of transportation, stock availability and importation costs. Buyers in Lagos can contact Nature Links Nigeria Limited for current availability and quotation.

For customers outside Lagos, same-day shipping to other states is available subject to logistics and product availability.
