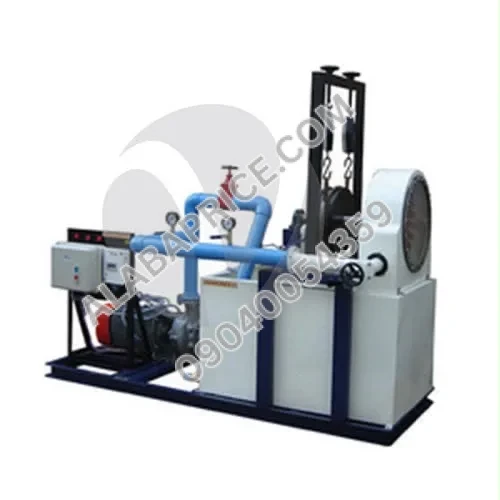

Pelton Wheel Turbine

Key Features

Designed according to the operating principle of a Pelton impulse turbine.
Suitable for hydraulic turbine laboratory demonstrations.
Runner fitted with Pelton buckets.
Water jet arrangement for transferring hydraulic energy to the runner.
Suitable for studying turbine speed and performance.
Robust construction for repeated laboratory use.
Supports investigation of flow rate and turbine output.
Suitable for measuring turbine rotational speed.
Can be configured with a brake dynamometer or other loading arrangement.
May include pressure gauges and flow-measuring instruments depending on model.
Suitable for engineering education and technical training.
Provides an accessible setup for demonstrating impulse turbine operation.
Available in different laboratory configurations and capacities.

Description
Reviews (0)

Description

Pelton Wheel Turbine Price in Nigeria

Nature Links Nigeria Limited is an Authorized Distributor, Supplier & Dealer of genuine Pelton Wheel Turbine in Nigeria, supplying hydraulic turbines, turbine testing equipment, fluid mechanics laboratory equipment and hydraulic engineering laboratory apparatus to customers across Nigeria.

Pelton Wheel Turbine Overview

The Pelton Wheel Turbine is an impulse hydraulic turbine designed to convert the energy of a high-velocity water jet into mechanical rotational energy. It uses specially shaped buckets mounted around a runner, with one or more water jets directed at the buckets.

Pelton turbines are commonly associated with high-head, relatively low-flow hydroelectric applications. A laboratory-scale Pelton wheel turbine can be used to demonstrate the principles of impulse turbine operation, water-jet energy conversion and turbine performance.

The Pelton Wheel Turbine is suitable for hydraulic engineering, fluid mechanics and mechanical engineering laboratories, as well as technical training environments where students need practical exposure to hydraulic machines.

Uses of Pelton Wheel Turbine

The Pelton Wheel Turbine can be used for practical demonstrations and experiments involving hydraulic turbines.

Common applications include:

Demonstrating the working principle of impulse turbines.
Studying water-jet energy conversion.
Investigating turbine speed.
Measuring turbine output and torque.
Studying the relationship between water flow and turbine performance.
Determining turbine efficiency.
Plotting turbine performance characteristics.
Demonstrating the effect of water-jet velocity on turbine operation.
Teaching hydraulic machine principles.
Conducting fluid mechanics laboratory experiments.
Supporting hydropower engineering practical classes.
Supporting engineering student projects and laboratory reports.

Benefits of Pelton Wheel Turbine

The Pelton Wheel Turbine provides hands-on experience with hydraulic energy conversion and impulse turbine technology.

Main Benefits

Makes impulse turbine theory easier to understand.
Provides practical experience with hydraulic machines.
Demonstrates conversion of water energy into mechanical energy.
Helps students understand turbine performance parameters.
Supports experimental measurement and calculation.
Useful for teaching hydropower engineering principles.
Develops laboratory measurement and data-analysis skills.
Supports theoretical versus experimental performance comparisons.
Suitable for universities, polytechnics and technical institutions.
Useful for repeated demonstrations and student experiments.

Compatibility

The Pelton Wheel Turbine is suitable for:

Hydraulic Engineering Laboratories
Fluid Mechanics Laboratories
Mechanical Engineering Laboratories
Civil Engineering Laboratories
Hydropower Training Laboratories
Renewable Energy Laboratories
Universities
Polytechnics
Technical Colleges
Engineering Training Centres
Research and Educational Institutions

The exact runner diameter, number of buckets, nozzle arrangement, pump capacity, instrumentation and loading system may vary according to the manufacturer and model.

Pelton Wheel Turbine Datasheet

Specification	Details
Product Name	Pelton Wheel Turbine
Turbine Type	Impulse Turbine
Energy Source	Water Jet
Runner	Pelton Bucket Wheel
Working Fluid	Water
Application	Hydraulic Turbine Study
Flow Measurement	Flow Meter / Measuring Arrangement
Pressure Measurement	Pressure Gauge / Sensor
Speed Measurement	Tachometer / Speed Sensor
Loading	Brake Dynamometer / Loading System
Control	Valve / Nozzle Control
Frame	Rigid Laboratory Support
Main Parameters	Flow, Head, Speed, Torque, Power, Efficiency
Application Area	Hydraulics & Fluid Mechanics

Specifications may vary depending on the manufacturer and selected configuration. Confirm the runner size, nozzle arrangement, flow capacity, head range, pump rating and instrumentation before purchase.

Pelton Wheel Turbine Price in Nigeria

The Pelton Wheel Turbine Price in Nigeria depends on the turbine size, runner construction, number of buckets, nozzle arrangement, hydraulic capacity, pump system and measurement instruments supplied.

Estimated Price Range

The estimated Pelton Wheel Turbine Price in Nigeria is approximately ₦1,500,000 – ₦6,000,000 for laboratory-scale configurations.

The final price may vary depending on the manufacturer, specifications, instrumentation, quantity, shipping costs, importation expenses and installation requirements. Contact Nature Links Nigeria Limited for the latest quotation.

Factors Affecting Pelton Wheel Turbine Price in Nigeria

Several factors can influence the Pelton Wheel Turbine Price in Nigeria, including:

Runner diameter.
Number and construction of buckets.
Number of water nozzles.
Hydraulic head and flow range.
Pump capacity.
Motor power.
Flow measurement system.
Pressure measurement instruments.
Speed measurement equipment.
Dynamometer or loading system.
Reservoir capacity.
Supporting frame construction.
Shipping and installation requirements.

Pelton Wheel Turbine vs Francis Turbine

Feature	Pelton Wheel Turbine	Francis Turbine
Turbine Type	Impulse	Reaction
Main Energy Transfer	Water jet impact	Pressure and velocity changes
Typical Head	High head	Medium head
Typical Flow	Relatively low flow	Moderate flow
Runner	Buckets	Bladed runner
Water Jet	Direct nozzle jet	Water enters through casing/guide system
Laboratory Study	Impulse turbine performance	Reaction turbine performance

Both turbine types are used in hydraulic engineering education but demonstrate different turbine operating principles.

Pelton Wheel Turbine vs Kaplan Turbine

Feature	Pelton Wheel	Kaplan Turbine
Type	Impulse	Reaction
Typical Head	High	Low
Flow	Relatively low	High
Runner	Bucket wheel	Propeller-type runner
Water Entry	Jet through nozzle	Axial flow through runner
Main Application	High-head systems	Low-head, high-flow systems

Why Buy Pelton Wheel Turbine in Nigeria?

A Pelton Wheel Turbine is a useful laboratory system for institutions teaching hydraulic machines, fluid mechanics and hydropower engineering. It enables students to observe impulse turbine operation and investigate parameters such as water flow, rotational speed, torque, power and efficiency.

When purchasing, institutions should confirm the required turbine capacity, hydraulic head, flow range, pump specification, nozzle arrangement, measurement instruments and loading system.

Where to Buy Pelton Wheel Turbine in Nigeria

Nature Links Nigeria Limited is a supplier of the Pelton Wheel Turbine and other hydraulic turbine, fluid mechanics and engineering laboratory equipment in Nigeria.

Distributor, Supplier & Authorized Dealer: Nature Links Nigeria Limited
Shop Address: F1571 UP, Alaba International Market, Lagos, Nigeria
Call: 07049528019
WhatsApp: 09040054359
Delivery: Same Day Delivery in Lagos. Same Day Shipping to Other States.

For the latest Pelton Wheel Turbine Price in Nigeria, contact Nature Links Nigeria Limited with your required specifications, turbine capacity and quantity.
