L Box Test on Self Compacting Concrete for Workability

Description

L Box Test on Self Compacting Concrete for Workability Price in Nigeria

Nature Links Nigeria Limited is an Authorized Distributor, Supplier & Dealer of genuine L Box Test on Self Compacting Concrete for Workability equipment in Nigeria, supplying concrete testing and civil engineering laboratory equipment to customers across Nigeria.

L Box Test on Self Compacting Concrete for Workability Price Range in Nigeria

The estimated L Box Test on Self Compacting Concrete for Workability Price in Nigeria is approximately ₦250,000 – ₦750,000, depending on the material, manufacturing quality, dimensions, finish, accessories, brand, and current importation costs.

Prices may vary based on exchange rates, shipping expenses, and the specific laboratory equipment manufacturer.

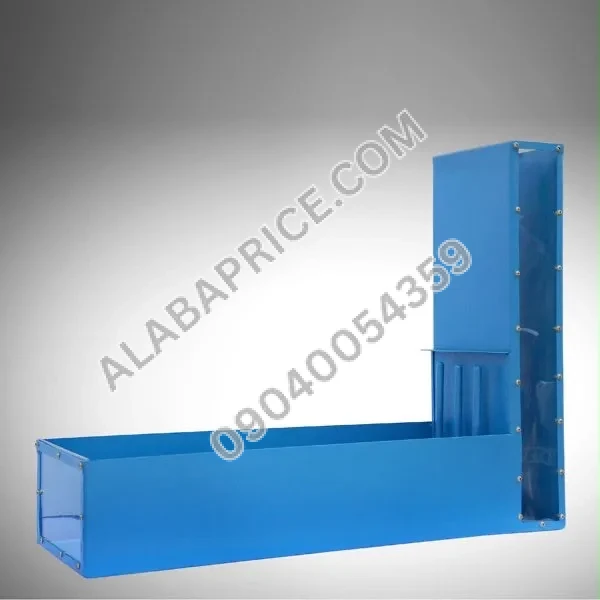

What Is an L Box Test Apparatus?

The L Box Test apparatus is a laboratory testing device used to assess the passing ability and flow characteristics of Self Compacting Concrete (SCC). It consists of an L-shaped container with a vertical section connected to a horizontal section.

During the test, fresh self-compacting concrete flows from the vertical section into the horizontal section through reinforcement bars or obstacles. The resulting concrete levels are measured to assess how effectively the concrete passes through confined spaces without conventional vibration.

Uses of L Box Test on Self Compacting Concrete for Workability

The L Box Test on Self Compacting Concrete for Workability is commonly used to:

• Evaluate the passing ability of self-compacting concrete
• Assess SCC flow through restricted spaces
• Check concrete workability
• Support quality-control procedures
• Compare different SCC mixtures
• Evaluate concrete mix designs
• Conduct research and development
• Support university and engineering laboratory experiments
• Investigate concrete behaviour around reinforcement
• Monitor the consistency of self-compacting concrete

Benefits of L Box Test Apparatus

Evaluates Passing Ability

The apparatus helps determine how effectively self-compacting concrete can flow through spaces containing reinforcement or other restrictions.

Useful for SCC Mix Design

Engineers and laboratory technicians can use the test to compare different concrete mixes and assess their flow behaviour.

Supports Quality Control

Regular testing can help laboratories monitor the consistency and workability characteristics of self-compacting concrete.

Easy Visual Observation

The L-shaped design allows users to observe the movement of fresh concrete from the vertical chamber into the horizontal section.

Durable Laboratory Construction

A properly manufactured apparatus can withstand repeated laboratory testing when correctly handled and maintained.

Suitable for Research and Education

The equipment is useful in civil engineering departments, construction-material laboratories and research facilities.

L Box Test on Self Compacting Concrete for Workability Datasheet

Specification	Typical Description
Equipment Type	L Box Test Apparatus
Application	Self-compacting concrete testing
Test Purpose	Passing ability and workability assessment
Design	L-shaped container
Test Material	Fresh self-compacting concrete
Flow Direction	Vertical chamber to horizontal chamber
Obstruction	Reinforcement bars or specified obstacles
Construction	Rigid laboratory-grade material
Surface	Smooth internal surfaces
Operation	Manual testing
Application Area	Civil engineering and concrete laboratories
Accessories	May vary according to manufacturer

Note: Exact dimensions, bar arrangement, materials, tolerances and accessories can vary between manufacturers. Buyers should confirm the manufacturer’s datasheet before purchase.

Compatibility

The L Box Test on Self Compacting Concrete for Workability is compatible with laboratory procedures involving fresh self-compacting concrete and workability assessment.

It can be used alongside other SCC testing equipment such as slump flow apparatus, V-funnel apparatus, J-ring apparatus, U-box apparatus and other concrete workability testing equipment.

L Box Test vs Slump Flow Test

The L Box Test primarily evaluates the passing ability of self-compacting concrete through restricted spaces, while the slump flow test is mainly used to assess the flowability and spread of fresh SCC.

Both tests can provide useful information when evaluating self-compacting concrete, but they measure different characteristics.

L Box Test vs V-Funnel Test

The V-Funnel Test focuses mainly on the flow time and filling ability of fresh SCC through a funnel-shaped apparatus. The L Box Test provides information about the ability of concrete to pass through reinforcement-like restrictions.

Using both tests can provide a broader understanding of SCC workability.

L Box Test vs U Box Test

Both the L Box and U Box tests are designed for assessing self-compacting concrete behaviour in confined conditions. The L Box uses an L-shaped flow path, while the U Box uses a U-shaped configuration.

The most appropriate apparatus depends on the laboratory’s testing requirements and applicable test procedure.

Who Needs an L Box Test Apparatus?

This equipment is suitable for:

• Civil engineering laboratories
• Concrete testing laboratories
• Construction companies
• Ready-mix concrete producers
• Universities and polytechnics
• Research institutions
• Quality-control laboratories
• Material-testing companies
• Structural engineering laboratories
• Construction-material manufacturers

How to Choose an L Box Test Apparatus

Before purchasing, consider the following:

1. Construction quality: Choose a rigid and durable apparatus suitable for repeated testing.
2. Dimensions: Confirm that the dimensions meet the laboratory’s required testing procedure.
3. Reinforcement arrangement: Check the configuration of the bars or obstacles.
4. Internal finish: Smooth surfaces make cleaning and concrete removal easier.
5. Measurement requirements: Ensure the apparatus supports the measurements required for your testing procedure.
6. Accessories: Confirm what is included with the equipment.
7. Manufacturer: Consider equipment quality, availability of replacement components and supplier support.
8. Application: Ensure the apparatus is suitable specifically for self-compacting concrete testing.

Factors Affecting L Box Test Price in Nigeria

The L Box Test on Self Compacting Concrete for Workability Price in Nigeria can be affected by:

• Manufacturer and brand
• Construction material
• Overall dimensions
• Manufacturing precision
• Reinforcement-bar configuration
• Surface finish
• Included accessories
• Importation costs
• Exchange-rate fluctuations
• Shipping and delivery costs
• Supplier availability in Nigeria

Where to Buy L Box Test on Self Compacting Concrete for Workability in Nigeria

Nature Links Nigeria Limited is a Distributor, Supplier & Authorized Dealer of laboratory and civil engineering testing equipment in Nigeria.

Distributor, Supplier & Authorized Dealer: Nature Links Nigeria Limited
Call: 07049528019
WhatsApp: 09040054359
Visit Their Shop Address: F1571 UP, Alaba International Market, Lagos, Nigeria
Delivery: Same Day Delivery in Lagos. Same Day Shipping to Other States.

Customers searching for the L Box Test on Self Compacting Concrete for Workability Price in Nigeria can contact Nature Links Nigeria Limited for current availability, pricing, specifications and delivery information.

Related Products

Slump Flow Test Apparatus Price in Nigeria, V Funnel Test Apparatus Price in Nigeria, J Ring Test Apparatus Price in Nigeria, U Box Test Apparatus Price in Nigeria, Concrete Flow Table Price in Nigeria, Slump Cone Test Apparatus Price in Nigeria, Vee Bee Consistometer Price in Nigeria, Compaction Factor Apparatus Price in Nigeria, Concrete Cube Mould Price in Nigeria, Self Compacting Concrete Testing Equipment Price in Nigeria

Conclusion

The L Box Test on Self Compacting Concrete for Workability Price in Nigeria generally depends on the apparatus construction, dimensions, reinforcement arrangement, manufacturer, accessories and prevailing importation costs. The equipment is an important laboratory tool for evaluating the passing ability and workability characteristics of self-compacting concrete under restricted flow conditions. Nature Links Nigeria Limited supplies L Box testing equipment and other concrete laboratory equipment to customers across Nigeria, with Same Day Delivery in Lagos and Same Day Shipping to other states.
